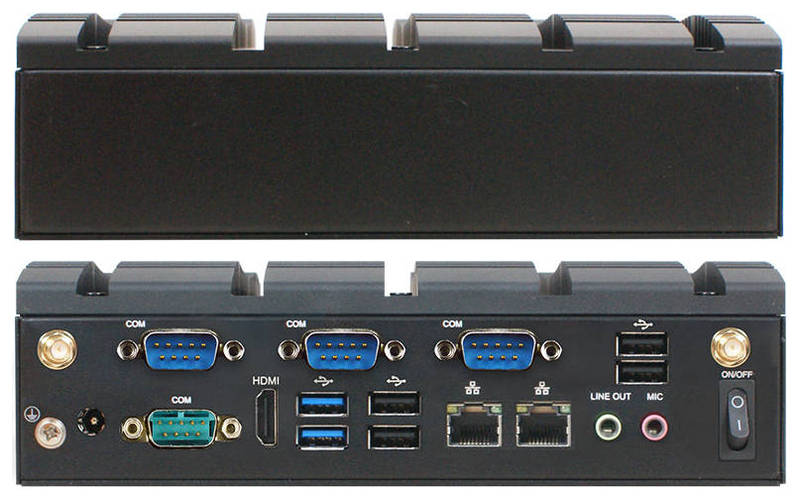

Jetway HBJC903I39-6412-N BoxPC (Intel J6412, 2x 2.5GbE LAN) [FANLESS]

Jetway HBJC903I39-6412-N BoxPC (Intel <b>J6412</b>, 2x 2.5GbE LAN) <b>[FANLESS]</b>
  • Intel J6412 !
  • 2 x 2.5GbE !
  • 4 x COM !
  • Fanless !

  • Fanless embedded Box PC with Intel® Celeron® Processor J Series (formerly Elkhart Lake)
  • Intel® J6412 with TDP 10W
  • Memory: 1 x DDR4 3200/2933MHz, up to 32GB
  • High-Speed Networking: 2 x Intel® I225-V 2.5GbE
  • Storage: M.2 M-Key with SATA interface and internal 2.5-inch SATA drive bay
  • 4K Display: HDMI® 2.0b with up to 4096 x 2160@60Hz


Share

469.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

Build/Install:
SYSTEM
CPUIntel® Celeron® Processor J Series (formerly Elkhart Lake)
CHIPSETIntel® J6412 (TDP 10W)
SYSTEM MEMORY1 x DDR4 3200/2933MHz up to 32GB
STORAGE DEVICE1 x M.2 M key (2242/2280, SATA Interface)
1 x 2.5" SATA 6Gb/s internal drive bay (only support 2.5" HDD with a hight ?10mm)
POWER
POWER REQUIREMENTMB : DC-in 12V
Adapter : AC100~240V / DC12V_5A_60W
DISPLAY
DISPLAY INTERFACE1 x HDMI2.0b (Max Resolution : 4096x2160@60Hz)
LAN
ETHERNET2 x Intel® I225-V, 2.5GbE
SYSTEM I/O
REAR I/O1 x DC Jack (12V DC-in)
4 x COM (4 x RS232 or 2 x RS232 + 2 x RS485)
1 x HDMI2.0b
2 x USB3.2 Gen.1
4 x USB2.0
2 x RJ45
1 x Line-out
1 x MIC
1 x Power Button
EXPANSION
M.21 x M.2 E key Socket for WIFI/BT (2230, PCI-Ex1+USB2.0 Interface)
MECHANICAL
MOUNTINGDesktop, Wallmount
DIMENSIONS (W x D x H)200.0(W) x 180.4 (D) x 59.5 (H) mm
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-10°C ~ 50°C (14°F ~122°F)
(Under the condition of using M.2 interface SSD)
STORAGE TEMPERATURE-20°C ~ 60°C (-4°F ~140°F)
OPERATING HUMIDITY10 ~ 90% @ 40°C, non-condensing
CERTIFICATIONCE/FCC Class A , LVD
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
